Standard HW Series-4 Ton

$3,664.00

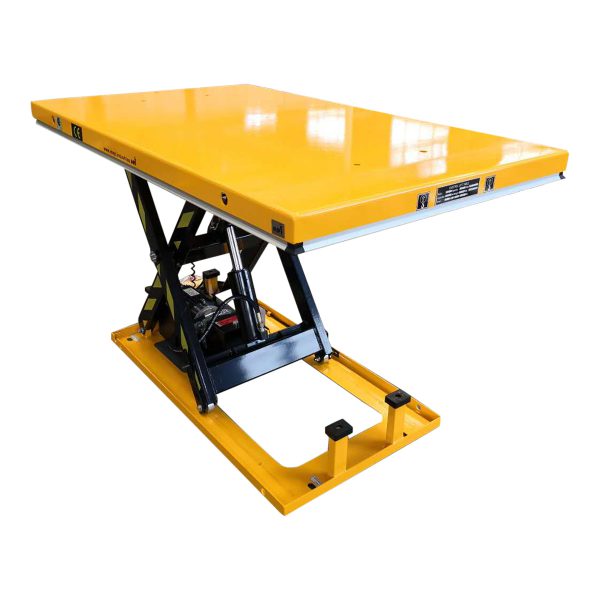

Our hydraulic scissor lift tables are made from high quality steel, ensuring longevity and reliability throughout their service life. Providing you with the most efficient, reliable and cost-effective lift product in the market today. The HW4000 series is rated to safely lift 4 tons of materials in a multitude of sizes and configurations. Perfect for virtually any application that requires positioning of materials and raising and lowering of heavy loads; for example, manufacturing, assembly, and raw material processing.

Capacity: 4 Ton
Model: HW4002

Specifications

MODEL HW4001 HW4002 HW4003 HW4004 HW4005 HW4006 HW4007 HW4008 HW4000
Capacity kg(lb.) 4000 (8800)
Min. Height mm(in.) 240 (9.4) 300 (11.8) 350 (17.8) 500 (19.70
Max. Height mm(in.) 1050 (41.3) 1400 (55.1) 1300 (5.1) 2000 (78.7)
Platform Size mm mm(in.) 100×1700 (47.2×67) 1200×2000 (47.2×80) 1000×2000 (40×80) 1200×2000 (47.2×80) 1000×2200 (40×86.6) 1200×2200 (47.2×86.6) 1700×1500 (67×60) 2200×1800 (48.6×70.9) 3750×1100 (147.6×43.3)
Base Frame Size mm(in.) 900×1600 (35.4×63) 900×2000 (35.4×80) 1620×1400 (63.8×55.1) 3300×980 (130×38.6)
Lift Time (Second) 30-40 45-50 35-45
Power Pack 110V/50Hz,AC 2.2kW
Net Weight kg(lb.) 375 (825) 405 (891) 470 (1034) 490 (1078) 480 (1056) 505 (1111) 570 (1254) 655 (1441) 952 (2094)

Description

The HW4000 Standard Lift Table series uses high-quality hydraulics, rounded corners of the tables to prevent injuries, and a myriad of safety features to make sure you and your people can focus on being productive without injuries. The high-quality hydraulic cylinder is encased in a weather-resistant, all steel housing. Precision velocity fuses on each hydraulic cylinder eliminates platform free-fall. Equipped with an explosion proof valve in the event of a hose rupture, hard chromed pivot points are fitted with lifetime-lubricated bronze bearings or Teflon coated bushings. Outfitted with hinged safety bars for maintenance and backed by a one-year manufacturer warranty, Mayi Industries has you covered!

Reviews

There are no reviews yet.

Be the first to review “Standard HW Series-4 Ton”

Your email address will not be published.

Features

EN1570:1999, CE, CSA, ANSI/ASME Certified
Aluminum safety bar to stop descent of platform
Heavy-duty cylinder with explosion-proof valve that slowly descends if tubing ruptures
Intelligent design with rounded corners to prevent injuries
Hinged maintenance bars for safety
