Four-Stage HF Series

$18,425.00

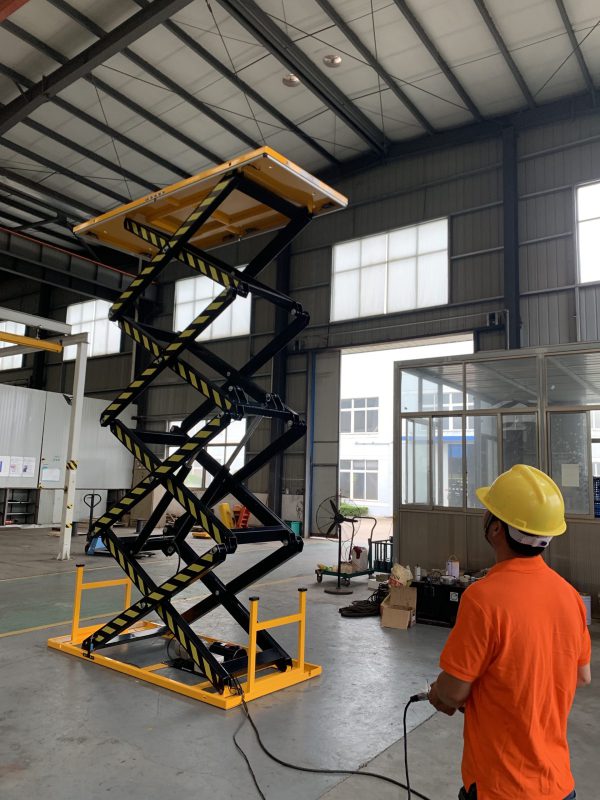

Our hydraulic scissor lift tables are made from high quality steel, ensuring longevity and reliability throughout their service life. Providing you with the most efficient, reliable and cost-effective lift product in the market today. The HF Four Stage scissor lift tables are rated to safely lift loads ranging from 1000 lbs up to 7000 lbs, to heights of up to 23 feet high. Available in a multitude of sizes and configurations, with many accessories to facilitate the flow of materials such as rollers, balltops, etc.. Perfect for virtually any application that requires positioning of materials and raising and lowering of heavy loads to higher altitudes; for example, dock lifts, manufacturing, assembly, material elevators, and raw material processing.

Model: HF3000

Specifications

MODEL HF400 HF800 HF1000 HF3000
Capacity kg(lb.) 400 (880) 800 (1760) 1000 (2200) 3000 (6600)
Min. Height mm (in.) 600 (23.6) 706 (27.8) 900 (35.4) 98- (38.6)
Max. Height mm (in.) 4140 (163) 4210 (165.7) 5000 (197) 6980 (275)
Platform Size mm (in.) 1700×1000 (67×40) 1700×1000 (67×40) 2000×1150 (78.7×45.3) 2400×1500 (94.5×59)
Lift Time (Second) 30-40 70-80 80-100 90-120
Power Pack 110V/50Hz, AC 2.2kW 110V/50Hz, AC 2.2kW 110V/50Hz, AC 2.2kW 110V/50Hz, AC 3kW
Net Weight kg (lb.) 548 (1205.6) 858 (1887.6) 1115 (2562.5) 2040 (4493)



Description

The HF Four Stage Lift Table series uses high-quality hydraulics, rounded corners of the tables to prevent injuries, and a myriad of safety features to make sure you and your people can focus on being productive without injuries. The high-quality hydraulic cylinder is encased in a weather-resistant, all steel housing. Precision velocity fuses on each hydraulic cylinder eliminates platform free-fall. Equipped with an explosion proof valve in the event of a hose rupture, hard chromed pivot points are fitted with lifetime-lubricated bronze bearings or Teflon coated bushings. Outfitted with hinged safety bars for maintenance and backed by a one-year manufacturer warranty, Mayi Industries has you covered!

Reviews

There are no reviews yet.

Be the first to review “Four-Stage HF Series”

Your email address will not be published.

Features

EN1570:1999, CE, CSA, ANSI/ASME Certified
Aluminum safety bar to stop descent of platform
Heavy-duty cylinder with explosion-proof valve that slowly descends if tubing ruptures
Intelligent design with rounded corners to prevent injuries
Hinged maintenance bars for safety
Three stages
