Low-profile HZ Series

Low-Profile HZ Series

$4,066.00

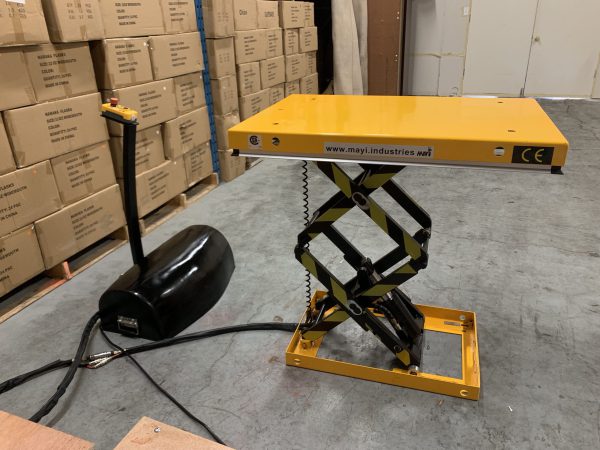

For smaller loads ranging from 500-2200 lbs loaded and unloaded in very tight crowded spaces, the HZ Low Profile lift tables from Mayi Industries was designed with a smaller table surface and its hydraulic drive sitting outside in a small, compact, power box with handles for ease of carrying. By having the power pack not sit under the table, these scissor lifts are capable of reaching a very low 6” minimum height. This is advantageous for situations where the table will be loaded manually by a worker (controller can be a foot pedal), or with a cart placed directly onto the table surface. For example, in electronic manufacturing where the parts are brought over in bins for the workers sitting down at their worktable.

Model: HZ0501

SKU: 2103101 Categories: , ,

Specifications

MODEL HZ0501 HZ1001
Capacity kg(lb.) 500 (1100) 1000 (2200)
Min. Height mm(in.) 162 (6.4) 180 (7)
Max. Height mm(in.) 950 (37.4) 770 (30.3)
Platform Size mm mm(in.) 610×910 (24×35.8) 610×916 (24×36)
Lift Time (Second) 17-22 15-20
Power Pack 110V/50Hz, AC 0.75kW 110V/50Hz, AC 1.1kW
Net Weight kg(lb.) 98 (215.6) 115 (253)

Description

Made from high quality steel, ensuring longevity and reliability throughout their service life. Providing you with the most efficient, reliable and cost-effective lift product in the market today. The HZ Low Profile Lift Table series uses high-quality hydraulics, rounded corners of the tables to prevent injuries, and a myriad of safety features to make sure you and your people can focus on being productive without injuries. The high-quality hydraulic cylinder is encased in a weather-resistant, all steel housing. Precision velocity fuses on each hydraulic cylinder eliminates platform free-fall. Equipped with an explosion proof valve in the event of a hose rupture, hard chromed pivot points are fitted with lifetime-lubricated bronze bearings or Teflon coated bushings. Outfitted with hinged safety bars for maintenance and backed by a one-year manufacturer warranty, Mayi Industries has you covered!

Reviews

There are no reviews yet.

Be the first to review “Low-Profile HZ Series”

Your email address will not be published.

Features

EN1570:1999, CE, CSA, ANSI/ASME Certified
Aluminum safety bar to stop descent of platform
Heavy-duty cylinder with explosion-proof valve that slowly descends if tubing ruptures
Intelligent design with rounded corners to prevent injuries
Hinged maintenance bars for safety
Low profile design
Compact table surface
