Standard EW Series

$6,127.00

The adaptation of greener and cleaner technologies in the workplace is a passion for us at Mayi Industries. It is this passion that inspired us to create the EW Pure Electric™ series of lift tables. Driven strictly by mechanical power using ball screw actuators, replacing the hydraulic system for a lift product with no fluid spills or hydraulic drift. With industry moving forward at an unprecedented pace, we electronically designed this lift table series to be easily integrated with other machines or complex automated systems, such as conveyor lines and AGVs.

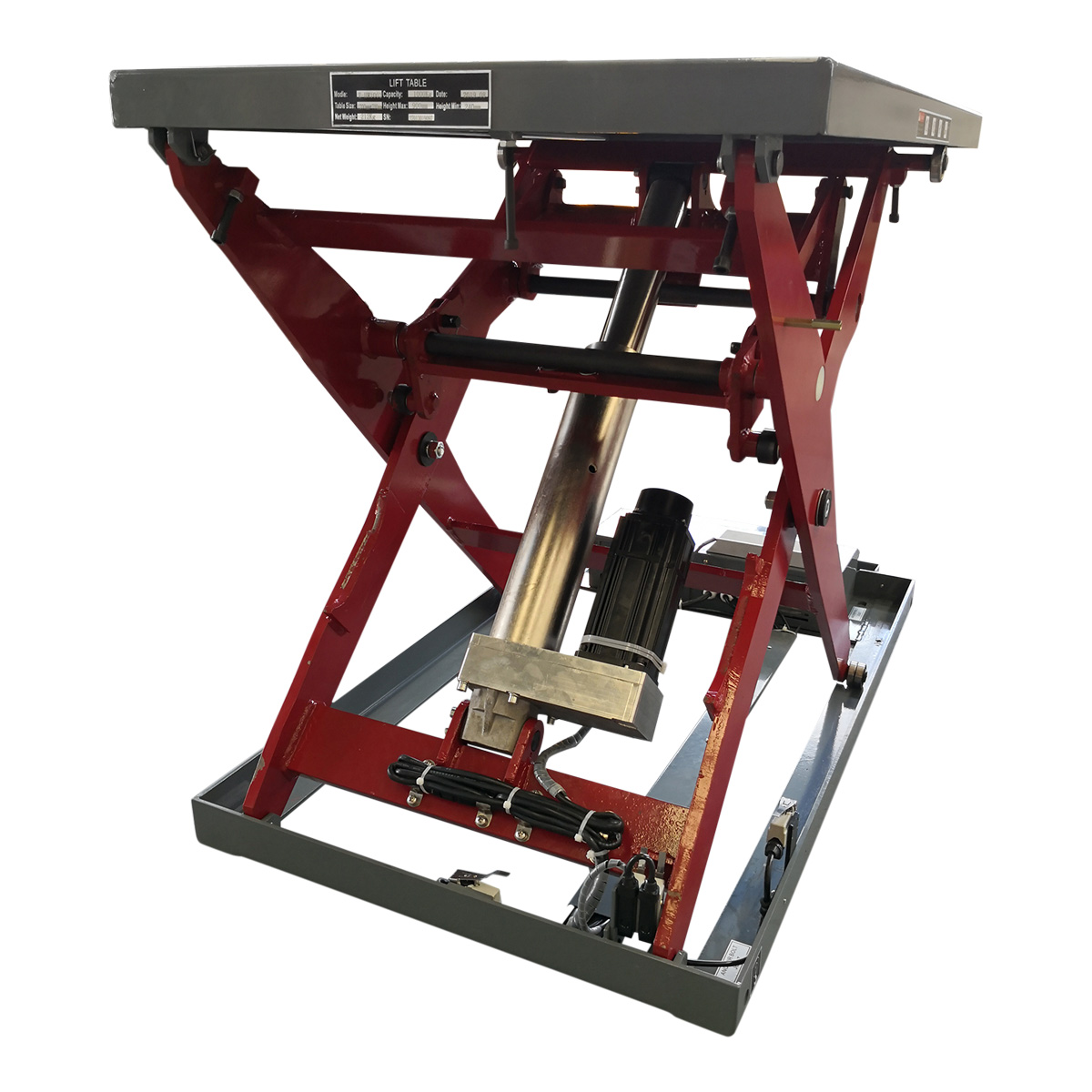

Model: EW1002

Specifications

Model EW0301 EW0501 EW1001 EW1002
Load kg(lb.) 300 (662) 500 (1103) 1000 (2206) 1000 (2206)
Min. Height mm(in.) 155 (6.1) 180 (7) 238.8 (9.4) 238.8 (9.4)
Max. Height mm (in.) 650 (25.6) 900 (35.5) 899 (35.4)
Platform Size mm mm (in.) 720×540 (28.4×21.3) 1200×700 (47.3×27.6) 1250×711 (49.2×28)
Lift Time (s) 20 20 20 20
Net Weight kg (lb.) 78 (172) 195 (429) 212 (466.5) 277 (610.7)
Power (w) 600 750 1100 1100
Motor DC 48V DC 48V DC 48V DC 48V
Control power DC 24V DC 24V DC 24V DC 24V

Description

These modern and intelligent lift tables are perfect for applications that require an environment without oil or other contaminants. Pharma, food processing and distribution, medical facilities, laboratories, etc.. The EW Pure Electric™ Lift tables are also extremely quiet and precise in their operation due to the sensitive ball screw cylinder design and its helical gears. The self lubricating bearings will keep the table working with minimal need for maintenance for a long time, comes with a weather proof CSA certified motor, and hinged safety legs for maintenance for your peace of mind. As always, backed by our top to bottom manufacturers’ warranty, Mayi Industries has you covered!

Reviews

There are no reviews yet.

Be the first to review “Standard EW Series”

Your email address will not be published.

Features

EN1570:1999, CE, CSA, ANSI/ASME Certified
AC/DC Powered
Can be made in stainless steel for sterile environments
Quiet operation
